L 150 Pump

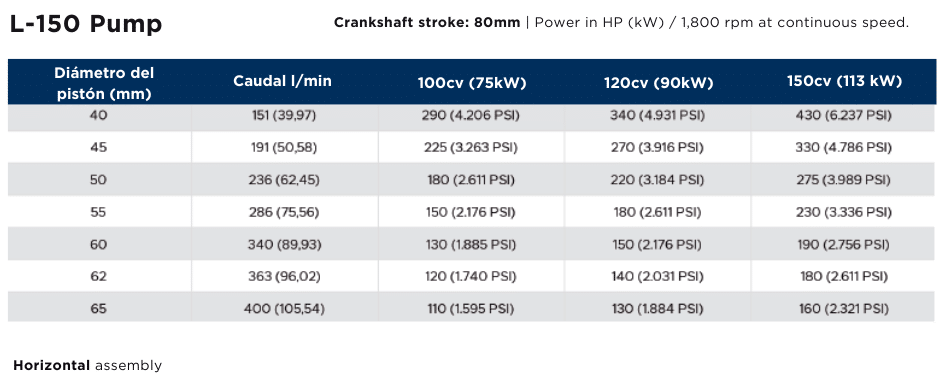

L-150 Pump

Crankshaft stroke: 80mm | Power in HP (kW) / 1,800 rpm at continuous speed.

Piston Diameter (mm)	Flow Rate (L/min)	100 cv (75kW)	120cv (90kW)	150cv (113 kW)
40	151 (39.97)	290 (4,206 PSI)	340 (4,931 PSI)	430 (6,237 PSI)
45	191 (50.58)	225 (3,263 PSI)	270 (3,916 PSI)	330 (4,786 PSI)
50	236 (62.45)	180 (2,611 PSI)	220 (3,184 PSI)	275 (3,989 PSI)
55	286 (75.56)	150 (2,176 PSI)	180 (2,611 PSI)	230 (3,336 PSI)
60	340 (89.93)	130 (1,885 PSI)	150 (2,176 PSI)	190 (2,756 PSI)
62	363 (96.02)	120 (1,740 PSI)	140 (2,031 PSI)	160 (2,321 PSI)
65	400 (105.54)	110 (1,595 PSI)	130 (1,884 PSI)	160 (2,321 PSI)

Type: Bomba Super Alta Pressão - Cabeçote L

Assembly: Horizontal
